New Models for Photovoltaic Cells in Multisim

NI Employee (retired)

NI Multisim is a powerful tool used to simulate and prototype power electronics circuit designs. Multisim has large database of configurable power component models along with existing SPICE models from various semiconductor manufacturers. The simulation capabilities in Multisim enable the evaluation of different power circuits of different ratings at an early design stage.


This is the first of a series of blog posts about new power electronics models specifically developed for simulations renewable energy applications in NI Multisim. The models were developed in collaboration with the Virtual Instrumentation and Renewable Energy Laboratory at the Transilvania University of Brasov in Romania.


In this article, three solar Photo-Voltaic (PV) cell models are presented:


1. Basic PV Cell

this model represents the ideal and most simplistic case of a PV cell model. the solar cell is modeled using an ideal current source in parallel with a diode and a load resistance.





The model is available in the Multisim file Testing the Solar Cell Modules_1.ms13 attached to this post. Connected to the model are two DC sources; Virrad representing the level of illumination where 1000V=1000W/m2 a, while Vbias allows the variation of the bias point to measure the output I-V characteristics. In a real world application, Vbias would be replaced by a load.




The internal parameters of the models are set based on a Si solar cell example:

  • The reverse saturation current (Io = 10-11 A)
  • The short circuit current (Isc = 0.034 A)
  • The area of the solar cell (A = 1cm2)


These parameters could be viewed and altered simply by double-clicking the component on the schematic and clicking on Edit model in the Value tab:

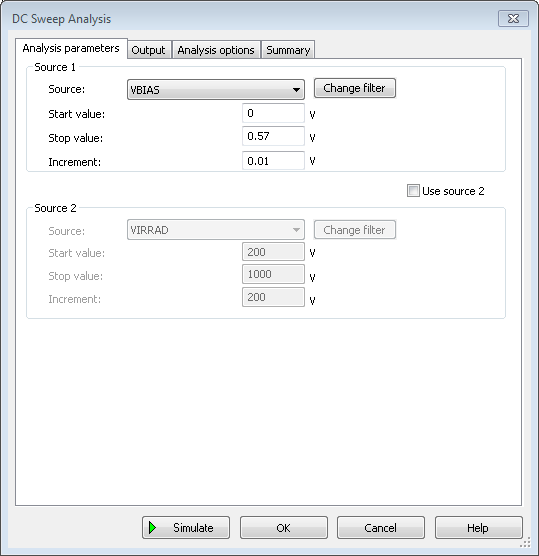

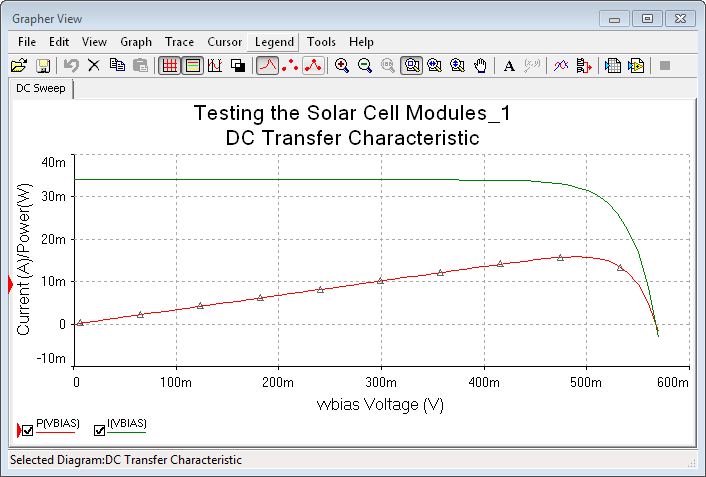

Running a DC Sweep simulation in Multisim to evaluate the output current at different bias points as well as the output power, the below graph could be reproduced







2. Advanced PV Cell with Series and Shunt Resistance

This model is based on the single exponential model published in [1]. It add a shunt and series parameters to model the panel resistance.


The same Si solar cell example was used to set the following parameters:

  • The constant material (B = 5.769*106 )
  • The short circuit current (Isc = 0.034 A)
  • The area of the solar cell (A = 1cm2)
  • The energy bangap (Eg = 1.11eV)
  • The series resistance (Rs = 0.1 Ω)
  • The shunt resistance (Rsh = 10000 Ω)


In this advanced model the open circuit voltage of the solar cell depends on the material of the solar cell expressed in the material constant B and the energy band gap Eg. The material constant can be determined using the variation of the reverse saturation current function of the temperature and it theoretically derives from this relation:


While the values of the energy Bandgap for some important semiconductor materials are available in the table below:


Semiconductor materials

Energy bangap [eV]

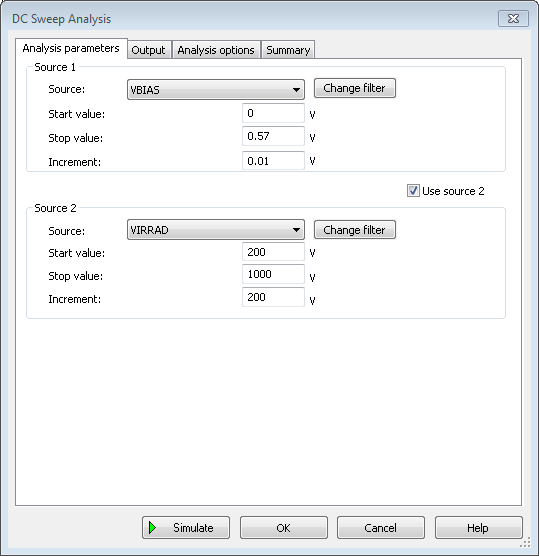

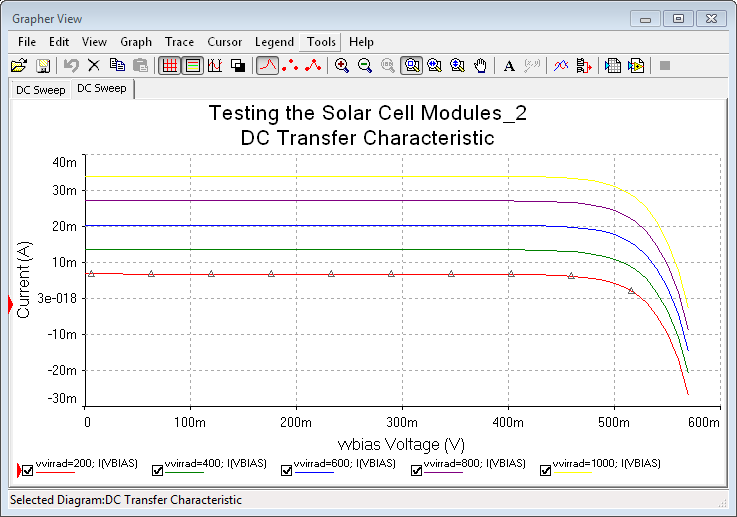

The model and the test circuit are available in the attachment Testing the Solar Cell Modules_2.ms13. Running a Nested DC Sweep yields the following I-V characteristics of the PV cell








3. Advanced PV Panel

This is a model of a PV panel based on a number of individual solar cells connected in series using one diode model with irradiance and temperature parameters. It is based on the physical parameters of the BP-MSX120 PV panel, however these parameters could be altered in the model to match other PV panels:


  • The short circuit current (Isc = 3.87 A)
  • The series resistance (Rs = 0.47 Ω)
  • The shunt resistance (Rsh = 1365 Ω)
  • The temperature coefficient of the power (kp = −0.5 ± 0. 05)
  • The number of solar cells in series (ns = 72)
  • The ideality factor of diode (A = 1.397)


The example testing circuit to validate this model is in the attached file Testing the Solar Cell Modules_3.ms13

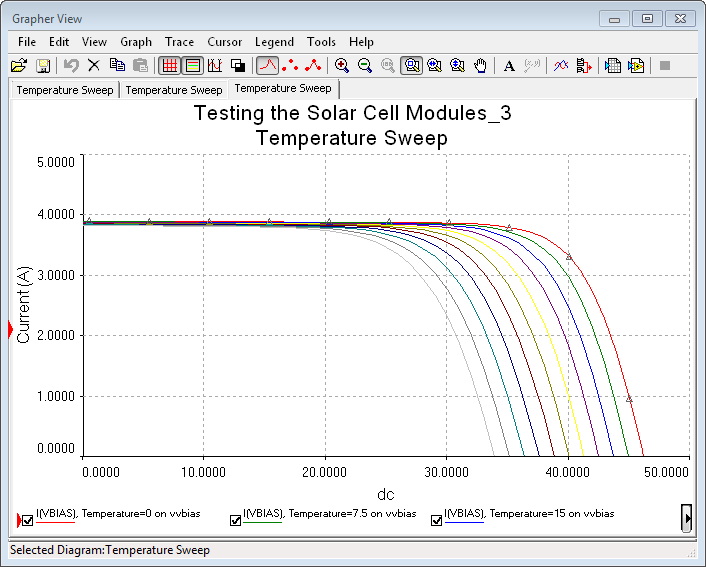

A nested temperature sweep is performed to evaluate the I-V characteristics of the panel under different temperature conditions:
