What Do the Picture Items Mean for a Boolean Control? - A Short Guide

Hi All,

Used the forums for a long time but have never posted so here we go.

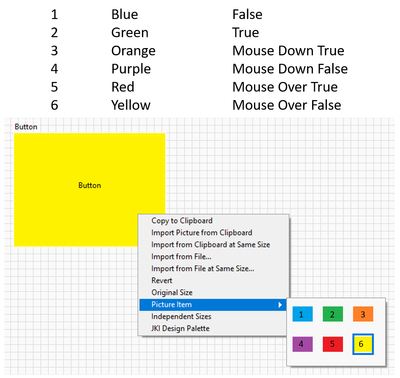

I noticed recently there was a lack of documentation around for what the different picture items mean for different states of a button so this is my attempt at fixing that. I made some colourful boxes, slung them into a control, and here's what I found:




Heres it in text for if this eventually gets archived

False                       || True                      || Mouse Down True
Mouse Down False || Mouse Over True || Mouse Over False





Thats all, hope someone finds this useful 🙂
