How to synchronize tasks

I need to synchronize two tasks - one for analog and one for digital data collection of waveforms. I have looked for examples and what I find is "Analog Input - Sychronization.vi". I am stuck because there are quite a few different styles of synchronization in the case statement and quite a few notes about details I know nothing about regarding various chassis or module types.



This is where I currently am where I have two different tasks that are not synchronized. When I run this I get a pretty significant difference between each task regarding when they start - up to about 0.1 seconds.






My equipment is a cDAQ-9185 with two modules:

  • NI 9205 voltage
  • NI 9425 DI



Is there someone who could kindly point me in the right direction on how to synchronize these tasks?

0 Kudos
Message 1 of 10
(2,430 Views)

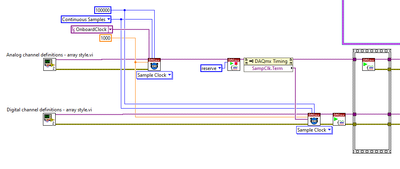

When possible, I like to sync with a shared sample clock as shown in the code below (a small mod of your posted code).



A trigger is another way to sync tasks, but only if they're on the same device or in the same chassis (cDAQ or PXI).  Otherwise, only the very initial start is in sync, but the clocks of the separate devices will drift apart from one another over time.



The effect is more pronounced for longer acquisitions that last hours or days.  But it's present even in shorter acquisitions.  A decent rule of thumb is that data acq clocks in different devices may differ by a few millisec per minute of acquisition time.





-Kevin P
