Message Bus Architecture - An Intro

Code and Documents

Attachment

Introduction

It all started when I was browsing across the forums and realised that I wanted an architecture that took all my favorite elements of LabVIEW (User events, Polymorphic VIs, Ease of Use, Flexibility being among them) and put them together all in one architecture...

Concepts

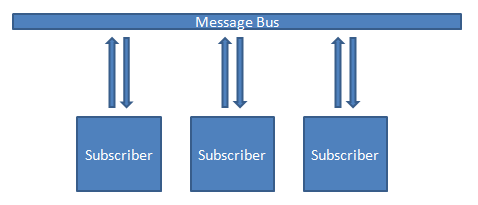

Let me introduce the idea of a Message Bus. You have subscribers to a message bus that can send or receive messages and perform actions as a result.

Basic Topology.PNG

A subscriber spends most of its time waiting for a message on the bus, and once its received a message, it can choose to discard or process it, and perform any neccessary actions.

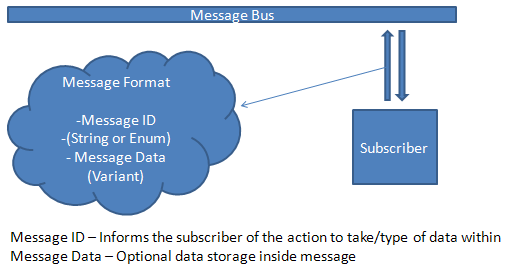

So what is a message? Its a user event that contains a Message ID and Message Data (as shown below)

Message Format.PNG

Ok, thats good so far, but what about SubVIs?

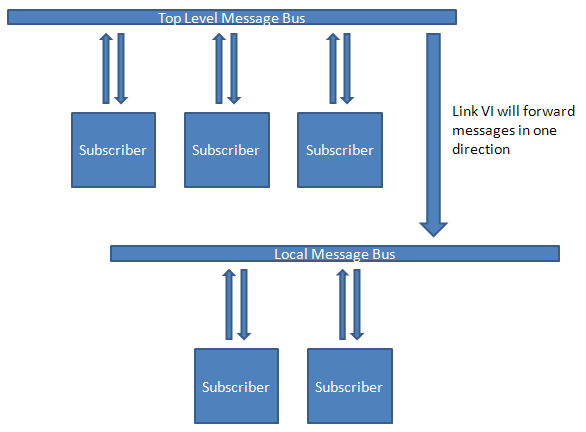

Basic Tiered Topology.PNG

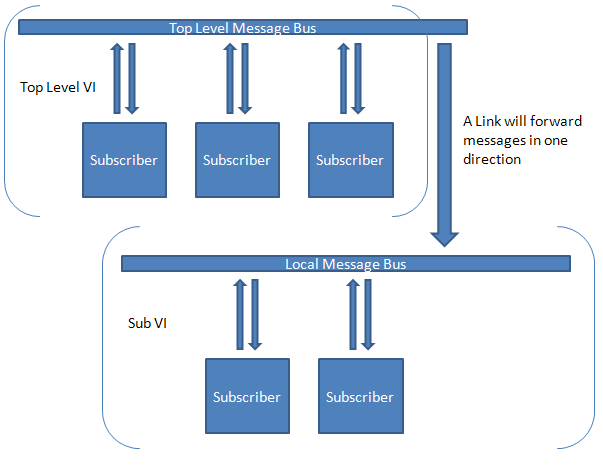

I propose that SubVIs (By this, I mean major SubVIs, that contain a big portion of your programs functionality like the DAQ handler, or a Comms handler) have their own local message bus and are linked to the top level bus via a Link. This means that all Top Level messages like Stop commands/Control commands are forwarded to the local message bus. This allows you to Stop all the subscribers (and hence the SubVI) from the top level easily, as well as send configuration/start/data messages. Now you have something that conceptually looks like this:

Basic Tiered Topology with VI Scope shown.PNG

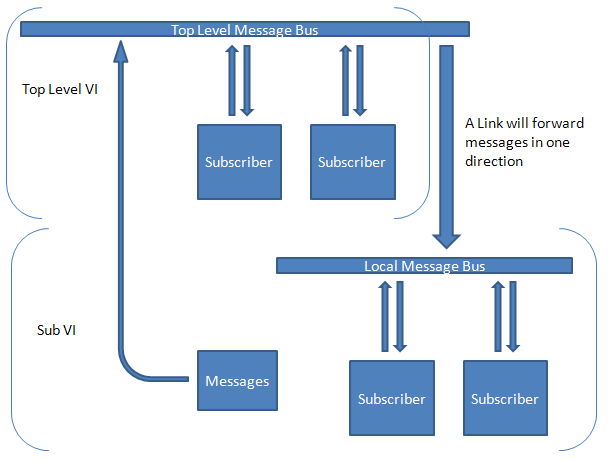

Now I'm thinking- how I report things like error data back to the top level so it can decide whats next in terms of program execution?

Bidirectional Concept.PNG

...with this architecture its easy to send data back up to the Top Level VI too.

Execution

What do the VIs look like?


What would a typical subscriber look like?

A Subscriber.PNG

I have written an example VI that shows typical usage of this architecture, including the 'Link and Filter' functionality where a local bus can choose to only listen to certain message IDs, therefore reducing the traffic internally.

If you have any questions, please comment on this and if it highlights a lack of detail in this article, I will append it in.

I have attached 2 versions of the architecture, both in LabVIEW 2009SP1. One uses Strings in the Message ID, and the other uses a Strict Type Def Enum as the Message ID. Both have their advantages and disadvantages (loose coupling vs. tight coupling), and if you are undecided with this, I'd look at the String version first.
