Introduction
Railway track switches are the mechanisms that allow a rail vehicle to change routes. Although track switches are a very small proportion of the network, when they fail they are a large contributor to rail delays. Switch failures cost the UK’s rail infrastructure manager Network Rail £120 million a year and account for more than 63,300 hours of delays.
Repoint is a new switching concept that introduces redundancy through the use of multiple (three) actuator bearers (shown in Figure 1). The project, funded by the RSSB (https://www.rssb.co.uk), has enabled the design and build of a full-scale demonstrator for which a new controller has been developed using an NI CompactRIO 9035 andLabVIEW. The Repoint demonstrator has been installed at Great Central Railway, Quorn and Woodhouse Station (Figure 1).
Application Description
The principle challenge for the controller is to synchronise the movement of six motors in the three active bearers. The other challenges involve integrating the actuator controller with the signals from the railway network to work in three different modes of the switching operation. Lastly, the management of data from the actuators and sensors for potential condition monitoring is an essential requirement of the controller.
Selection of the Controller
The bearer level controller is designed as a cascaded controller with three control loops, as shown in Figure 2. The innermost loop is the current control, the middle loop is the velocity controller. These two loops are inbuilt in the motor controller. The outer loop is a position control loop which is developed using LabVIEW. The two motor-cam assemblies are fed with the desired position command and the feedback from the cam angle encoder is used in controlling the motion. The controllers for all three actuator bearers are developed using the same algorithm.
The top-level controller receives the desired switch position from the railway signal interlocking and sends the desired position command to the individual motor controllers. Feedback regarding the switch rail position comes from a separate lock and detection concentrator, independent of the controller. This combines the signals from the sensors within the three bearers into a single switch position output. Depending on the switch positon received, the input from the railway signal interlocking and the current working mode, the controller commands the appropriate action.
The functions of the controller are:
- The controller ensures the synchronized motion of all six motor/gearbox/cam assemblies within three actuator bearers.
- The controller should act depending on the signal from the signalling interface, which is governed by the standard railway practice.
- The controller should remotely operate in a railway environment without manual interference.
|
Description |
Quantity |
|
cRIO-9035 CompactRIO Controller |
1 |
|
NI-9205 C Series Voltage Input Module : AI module |
2 |
|
NI 9264 Spring: AO module |
1 |
|
NI 9425 Spring Terminal, Sinking Digital Input C Series Module |
1 |
|
NI 9476 Spring Terminal, Sourcing Digital Output C Series Module |
1 |
Table 1: Selection of control hardware

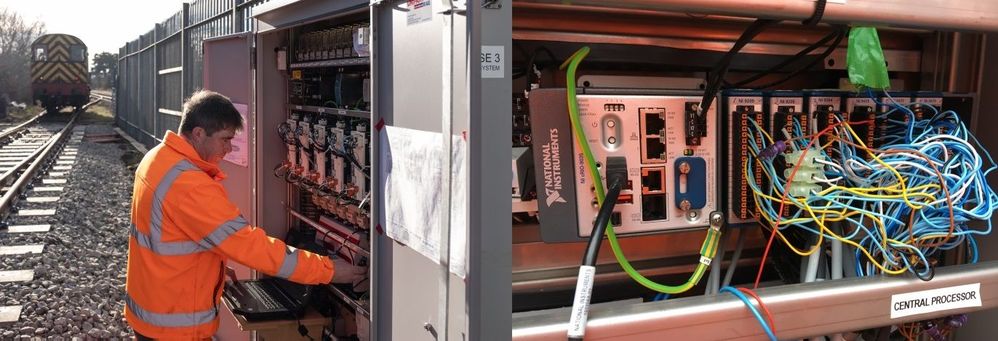

The input/output modules (listed in Table 1) were selected based on the project requirements and their compatibility with the selected controller. The CompactRIO along with the motor controllers and other electronic equipment is installed within the lineside location case (Figure 4).
Figure 5 shows the user interface and a part of the LabVIEW code for the controller, developed to drive the three mechatronic actuators of the Repoint railway track switch.
