Flexible DAQmx State Machine for Automated Tests

Overview

This VI shows how to use a State Machine with an array of steps to run throguh a pre configured list of steps.



Description

This Example shows a process where we turn a heater on, then measure a finite numer of samples then tunr the heater off.



Requirements

Software

  • LabVIEW 2012 or compatible
  • NI-DAQmx 9.5.5 or compatible

Hardware

  • NI Multifunction DAQ Device



Steps to Implement or Execute Code

  1. Set the Physical Channels for a digital output and analog input.
  2. Configure the Steps from a list of States dropdown.(to add new states right-click the dropdown and select Open Type Def and Edit the Elements)
  3. Set the Numer of Samples thenrun the VI



Additional Information or References





DAQmx State FP.PNG

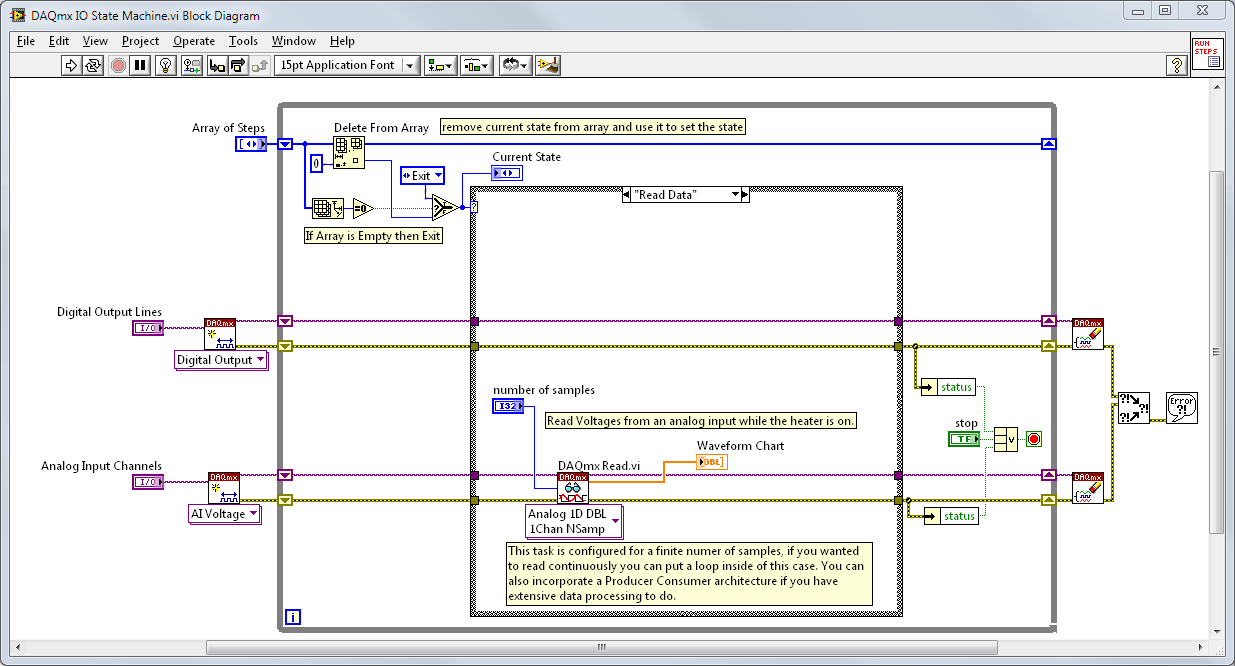

DAQmx State Machine FP.PNG

 **This document has been updated to meet the current required format for the NI Code Exchange.**
